Proving

SINMAG RETARDER PROVER

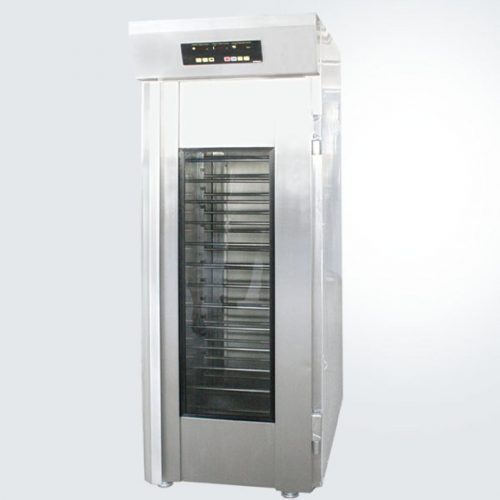

Sinmag Retarder prover DC-18F
Stainless steel inside and out fully programmable 1door 18 trays capacity 460 x 720mm 80mm spacing +2 to +40°C Power 240v 1-1/8 Hp compressor Dimensions W760 x D1070 x H2130mm Weight 180kg

Retarder prover DC-36SA
1door Holds 18 trays – 16/18×29″” or 36 400x600mm 80mm spacing Temperature range +2 to 40 degrees Single phase power 15 amp plug 1-1/8 Hp compressor Stainless steel inside and out Fully programmable W905 x D1150( body 920) x H2150mm

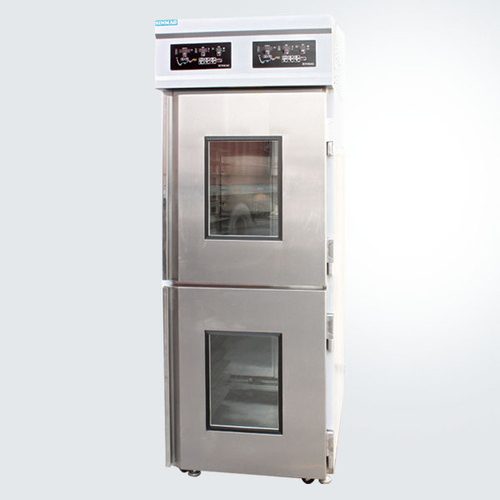

Sinmag Retarder prover DC-236S
Stainless steel inside and out fully programmable 2 door 2 chamber 36 trays capacity 400 x 600mm or 18 trays 460x760mm 18 /9 per chamber 75mm spacing -15 to +40°C Single phase power 2 of 5/8 Hp compressors – Power 2kW x 2 Dimensions W775 x D1225 x H2130mm Weight 250kg

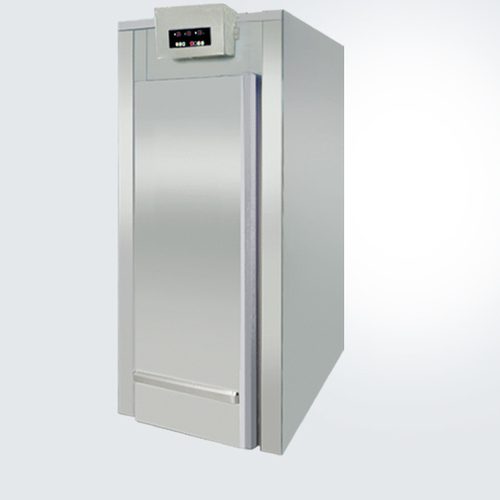

Sinmag Retarder prover DC-1R
Stainless steel inside and out fully programmable 1 door Holds one single rack – 16 or 18″ cooling racks +2 to 40°C Power XXv XX Hp compressor Dimensions W x D x Hmm Weight 0kg

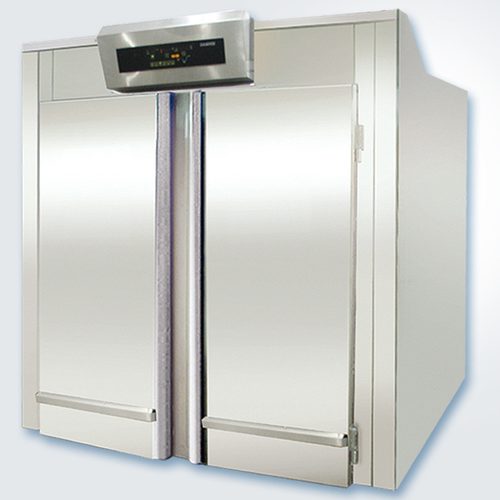

Sinmag Retarder prover DC-R2
Stainless steel inside and out fully programmable 2 hinged door Holds three single racks – 16 or 18″ cooling racks +2 to 40°C Power 415v 2 Hp compressor Dimensions W775 x D1,045 x H2,300mm Weight 250kg (est. price)

HUMIDITY UNIT

ST-200 Humidity Unit with Digital controls
Connect the unit to water and electricity inside your prover room.
Humidity adjustable from 40% to 98%
To be connected to service by customers licensed plumber and electrician.
Unit Dimensions: W732 x D230 x H1,650mm”

SINMAG CONVECTION OVENS AND PROVERS

Sinmag Prover to suit convection oven SM-716FB
Water Autofill – 16 tray capacity up to 460 x 760mm – two doors-digital controls Power 240v 0.7Kw Dimensions W870 x D1,160 x H1,057mm 70kg

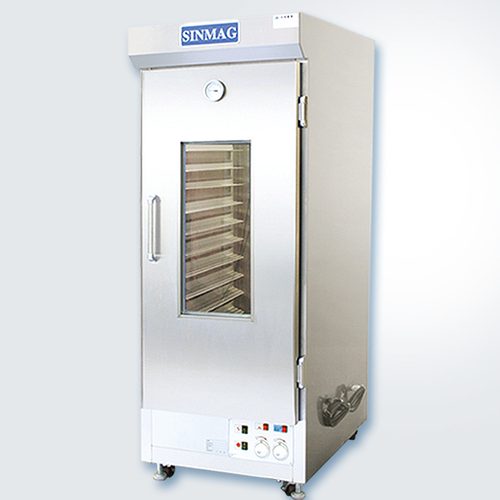

Sinmag Prover With Fixed Shelves
Single Door, 16 Tray/Shelf Capacity (460x720MM TRAY SIZE) 1.5KW 580W X 940D X 2000HMM 100KG

Sinmag Prover With Fixed Shelves
Single Door, 16 Tray/Shelf Capacity (460x720MM TRAY SIZE) 1.5KW 580W X 940D X 2000HMM 100KG
